OBS – How to connect on Stream Control

Software: Hercules Stream Control
App: OBS


How to connect on Stream Control

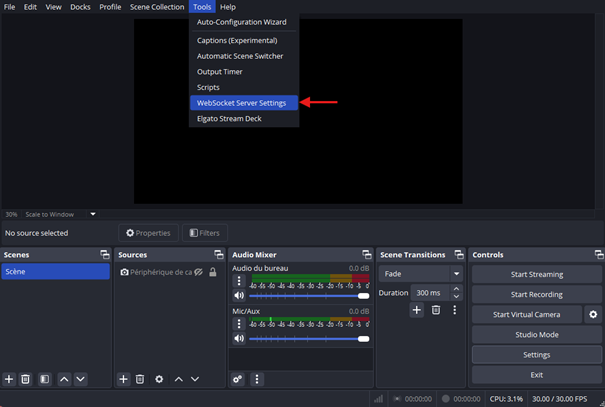

1. In the OBS Studio app, click "Tools", then select "WebSocket Server Settings"

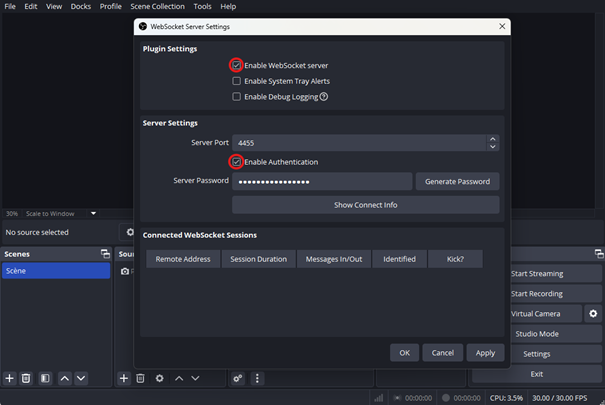

2. Make sure the following 2 options are checked:

- Enable WebSocket server
- Enable Authentication
- Click “Apply” to save



3. Copy and paste the Port and the Sever Password into the corresponding fields in the OBS plugin settings on Stream Control

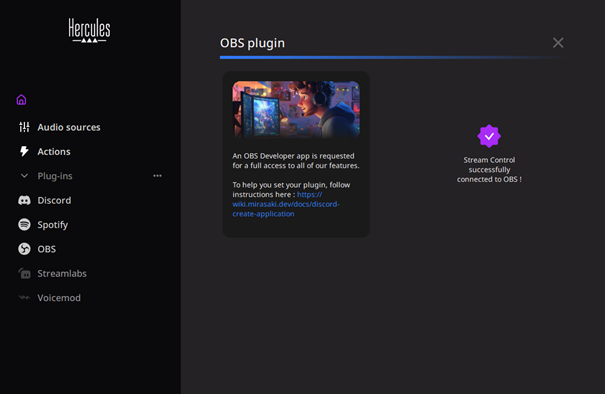

4. You will know you are connected when a purple icon appears.




OBS features available on Stream Control

Once Stream control is successfully connected to OBS, you will be able to:
- Play audio file – Action
- Scene switch – Action
- Filter ON / OFF – Action
- Toggle recording – Action
- Start / Stop streaming – Action
- Audio Source Management – Audio Level (Stream 100 only)
